Cost Effective Reliable Total Station
PRECISE T3 Lite
Reliable Results. Smarter Budget.
Algorithmic Magic to Enhance ‘Precision, Reliability, and Ease’, for an Exceptional User Experience.
Super-high Fix Rate
99.9%
Our product achieves exceptional positioning accuracy.
On average, only 1 out of every 1,000 positioning attempts,
This precision ensures unparalleled reliability for critical applications.
*Fix rate and accuracy can be affected by external conditions such as multipath, obstacles, satellite geometry, and atmospheric conditions.

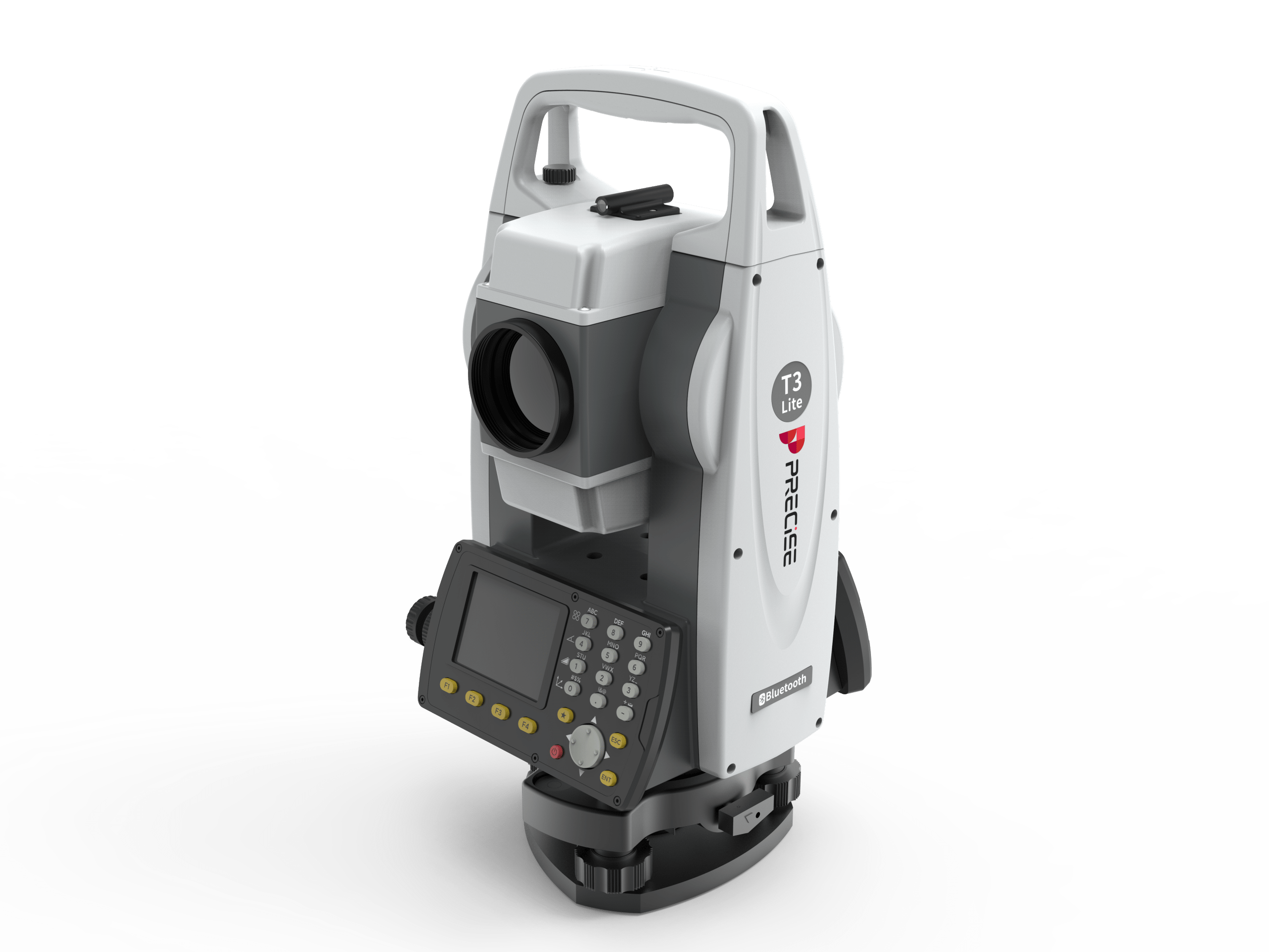

PRECISE T3 Lite Total Station
Originated from European optical technology, PRECISE T3 Lite comes out with a brand new hardware structure and new measuring tape, and static absolute encoder. The 2″angle measurement accuracy and the 1000m non-prism measuring range enable PRECISE T3 Lite to do various kinds of precision measurements.

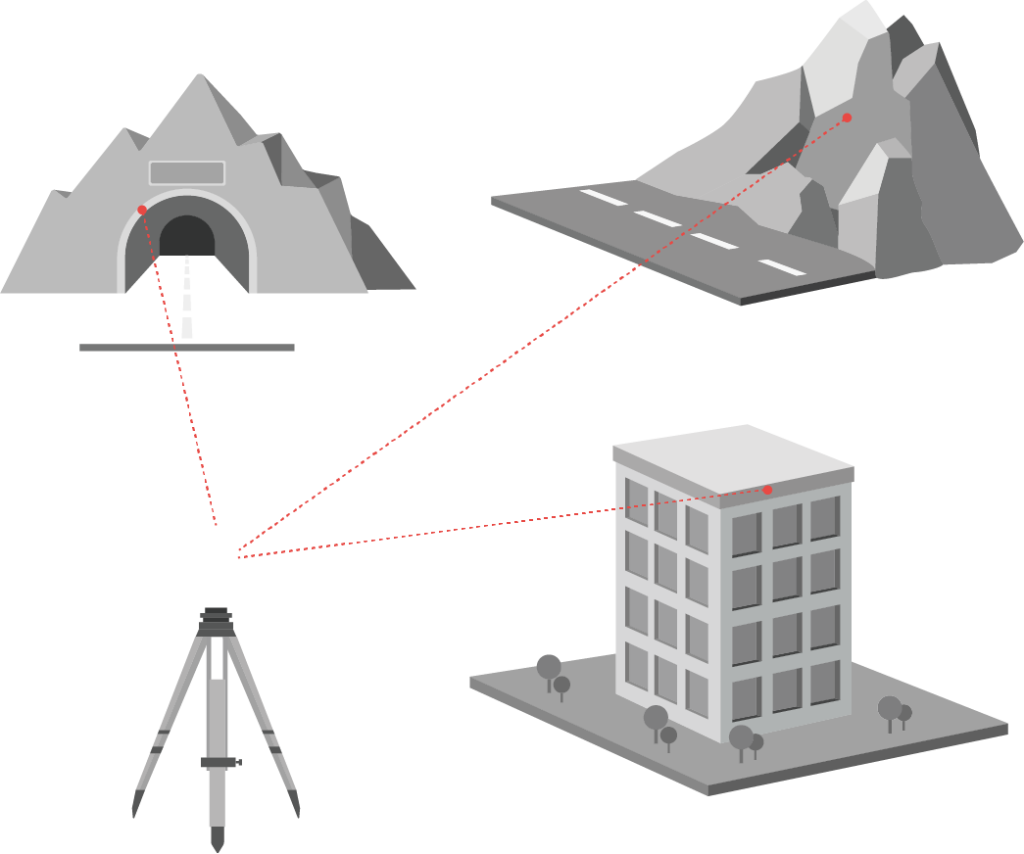

Precision Distance Measurement Technology
1,000m
Non-Prism Distance measurement
4,000m
Single Prism Distance Measurement
PRECISE T3 Lite can achieve fast and accurate distance measurement through built-in eight adaptive high-frequency measuring rulers and advanced phase laser ranging algorithms, meeting the accuracy requirements of various advanced engineering measurements.
Precision Angle Measurement Technology
It adopts a self-developed precision angle sensor architecture, adds a global sub-second high-order error compensation algorithm, and combines sub-pixel resolution photoelectric decoding and nano-level photolithography process absolute encoding code disk to bring stable and reliable angle measurement accuracy.

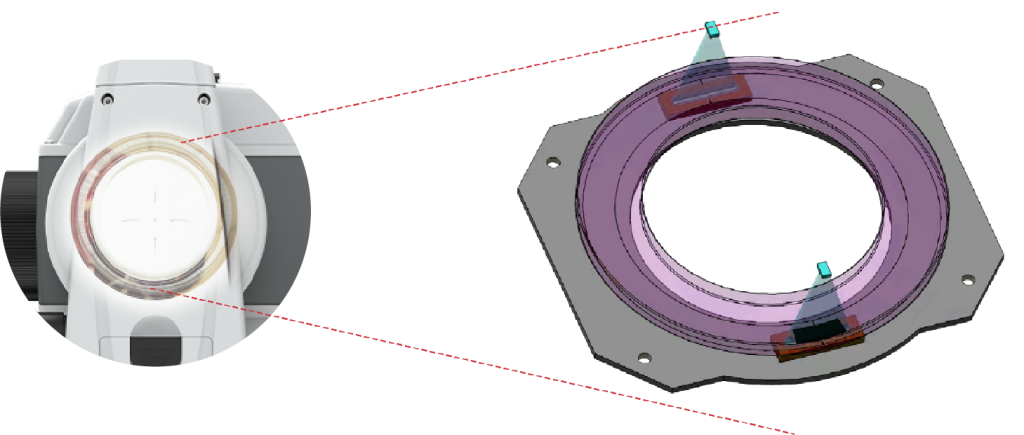

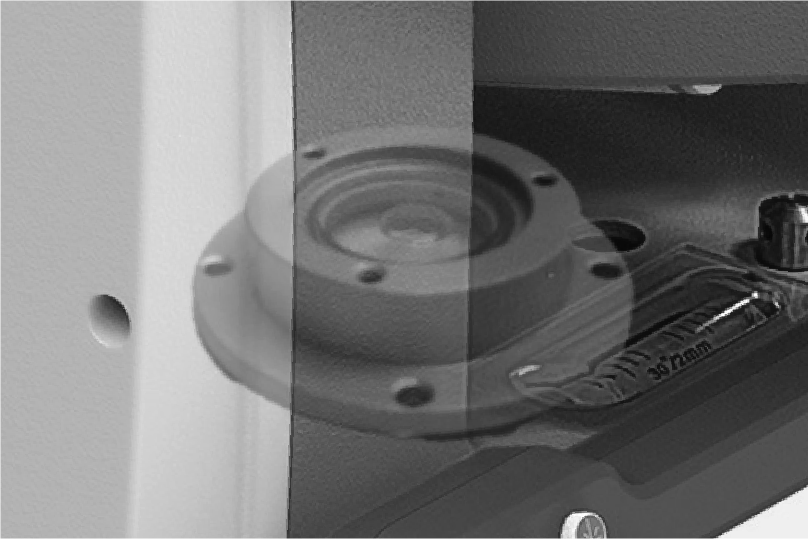

Coaxial Comprehensive Compensation
The compensator is located directly above the vertical axis. It can quickly and accurately compensate during rotation. At the same time, CCD is used for precise calibration. The compensation range is up to 4′, and the operation efficiency is extremely high.

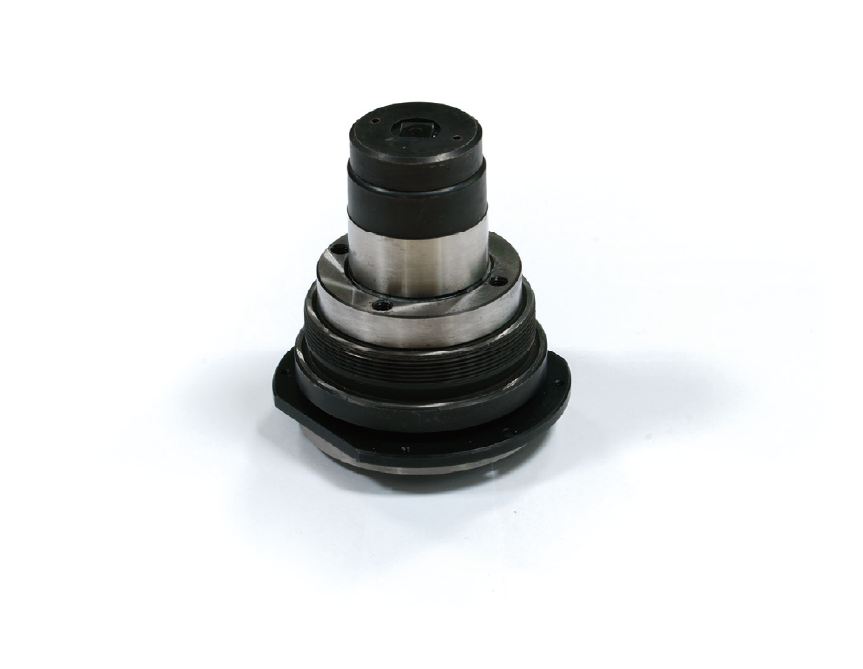

Special Grade Dense
Bead Shaft System
Using customized ultra-high-precision grinder precision processing technology, the carefully selected top-grade G3 steel balls are processed through dozens of processes to create a special-grade dense ball shaft system that can meet the stringent requirements of 1″-level instruments.

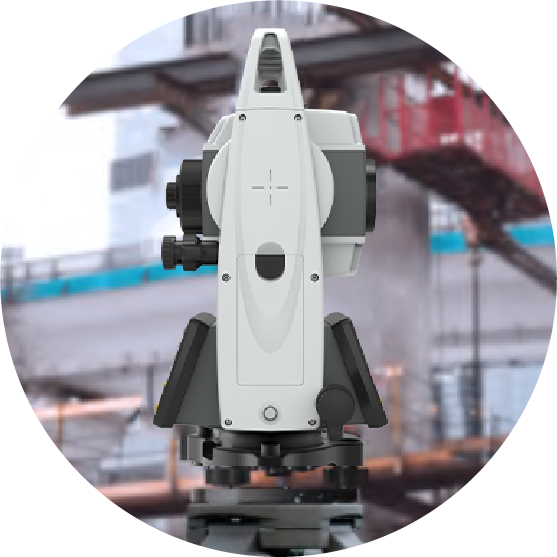

Strong Protection
PRECISE T3 Lite’ s excellent protective performance, powerful precision shafting electronic compensation technology and high redundancy The angle measurement decoding algorithm allows the total station to be used in various extreme engineering environments, making measurements stable and reliable.
Precision Angle Measurement Technology
It adopts a self-developed precision angle sensor architecture, adds a global sub-second high-order error compensation algorithm, and combines sub-pixel resolution photoelectric decoding and nano-level photolithography process absolute encoding code disk to bring stable and reliable angle measurement accuracy.

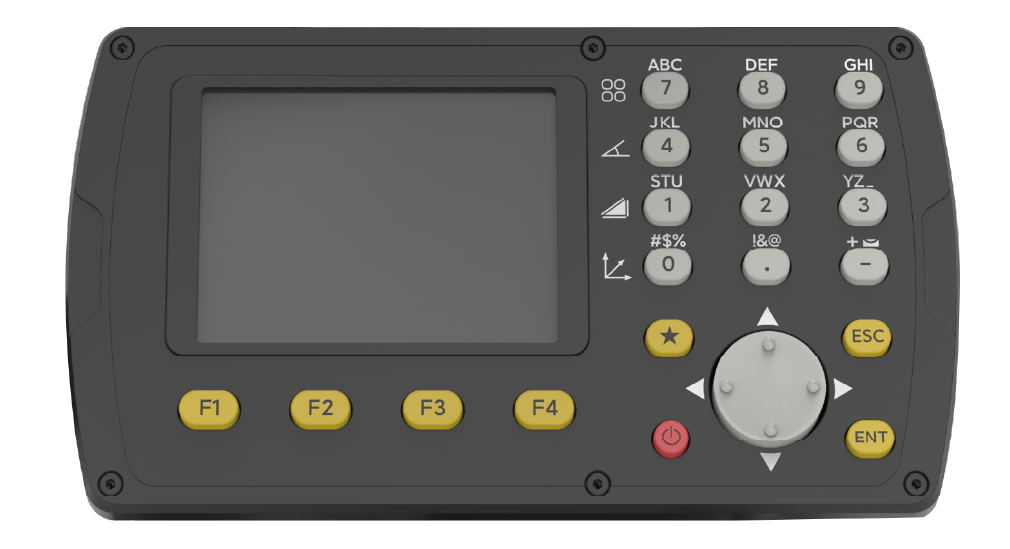

Ease-to-use Interaction

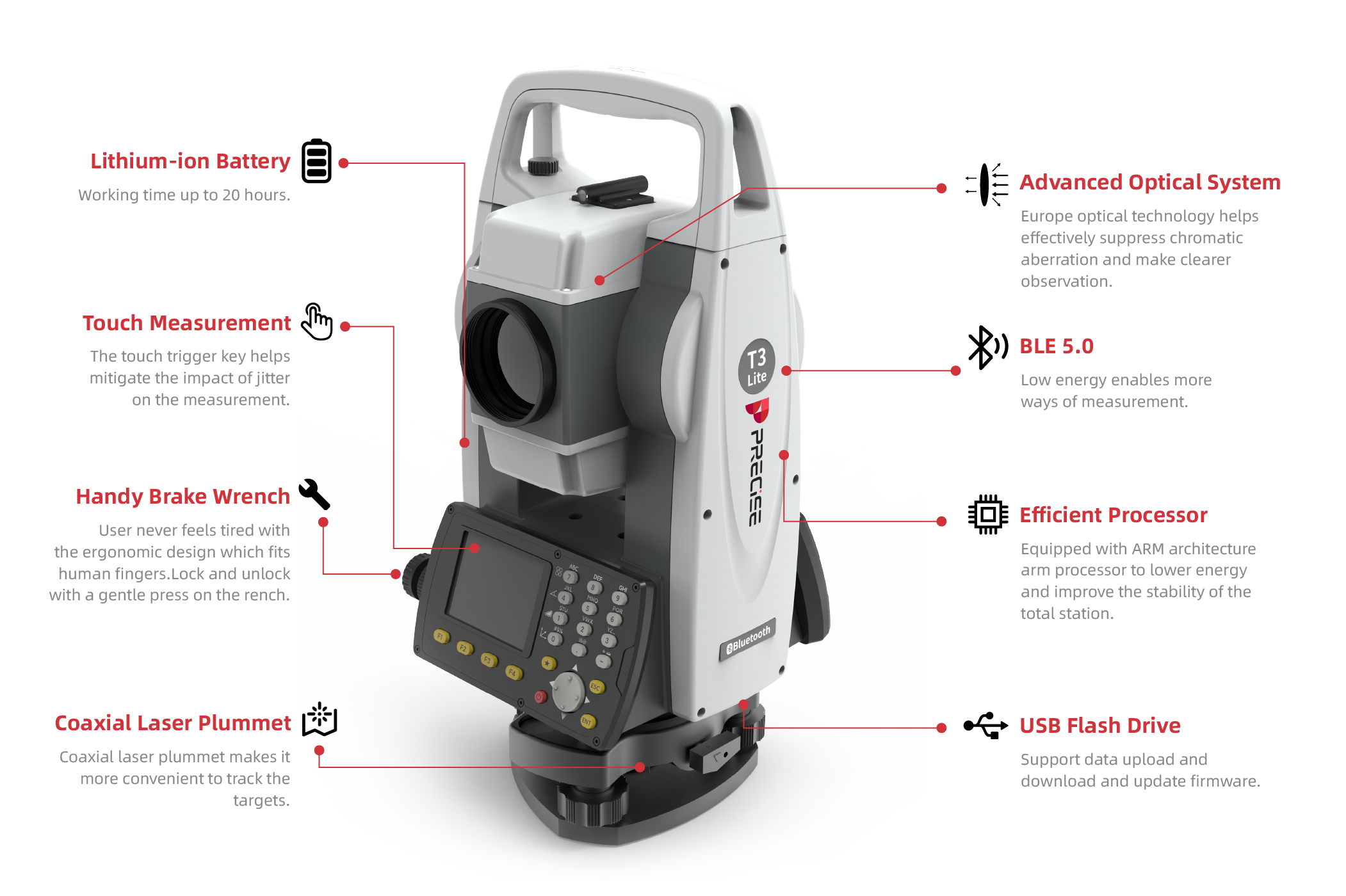

Equipped with a full-featured operation panel, 3.2-inch bright color screen, and mute buttons with comfortable spacing. Built-in commonly used measurement functions, standard Bluetooth 5.0 for convenient data transmission, and the third-party application. PRECISE T3 Lite is a combination of advanced hardware and software.
3.2-inch Color Screen
Larger screen brings more data display and good viewing experience.
Rounded Backlight Button
The rounded backlight button makes it easier for measurement work at night.
Customized Fn Function Key
The customized function key for a personalized total station.
One-touch Laser Fixed
One touch, rapid centring and leveling up for measurement.

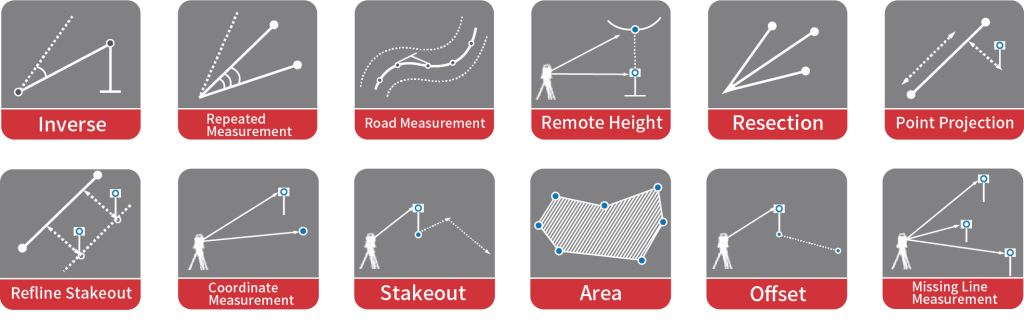

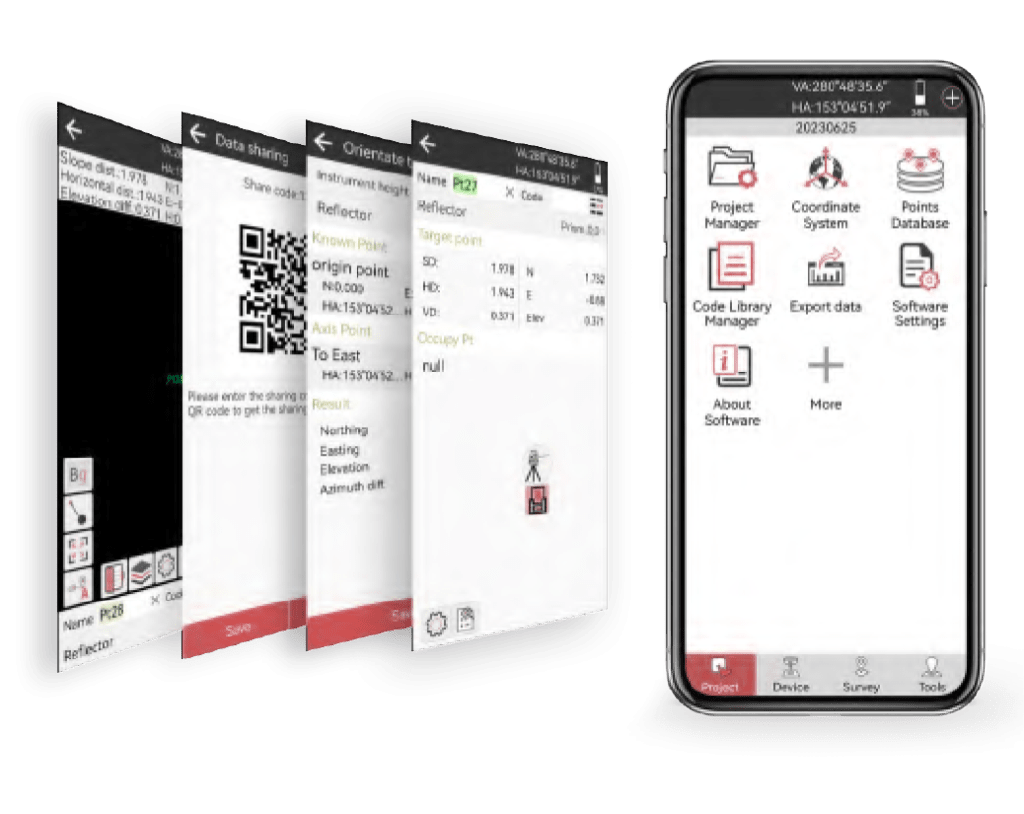

On-board Measurement Software
Compatible with Third-party APP
PRECISE T3 Lite supports mobile phone communication via Bluetooth with third parties APP such as DiMap Pro or Surveyor software to realize the function of intelligent total station.

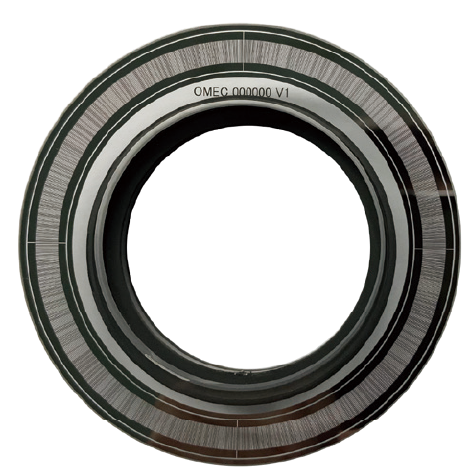

High-Tolerance Encoding. Always Accurate.
Unique coding design and highly fault-tolerant photoelectric decoding technology allow the code disc to accurately measure angles even when 70% of them are blocked, achieving accurate readings without fear of moisture and dust.
Online power supply and debug.
For High-class Projects
Road
PRECISE T3 Lite has excellent angle measurement accuracy, distance measurement accuracy and compensator accuracy, and is suitable for highways and high-precision rail transit.
Bridge
PRECISE T3 Lite has excellent distance measuring performance. It has fast short-distance measurement speed and high long-distance accuracy. It is suitable for bridge installation and construction.
Tunnel
Unique angle measurement technology, no fear of dust and condensation, with laser indicator and keyboard backlight, PRECISE T3 Lite is fully qualified for tunnel measurement.

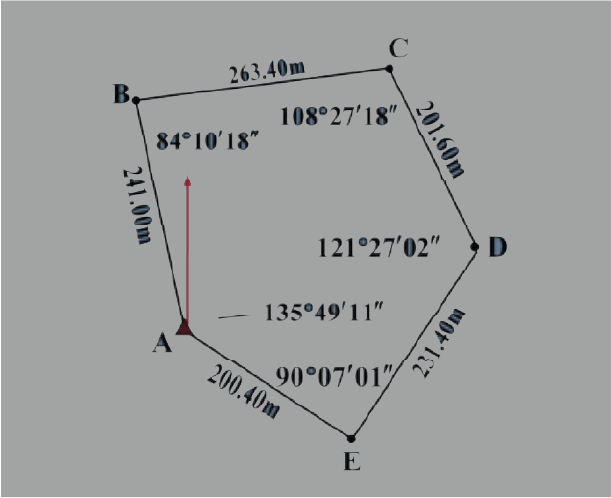

Traverse Survey
PRECISE T3 Lite has stable angle measurement accuracy and distance measurement accuracy, strong consistency, and is suitable for traverse survey.
Detail Specification
TELESCOPE
| Imaging | Right-reading |
| Magnification factor | 30x |
| Field of view | 1°30′ |
| The shortest line of sight | 1.7m |
| Resolution | 2.8″ |
ANGLE MEASUREMENT
| Precision | 2″ |
| Reading System | Absolute Encoders |
| Minimum display unit | 1″ |
DISTANCE MEASUREMENT
| RANG | |
| Non-Prism | 1,000m |
| Reflector | 2,000m |
| Single Prism | 4,000m |
| ACCURACY | |
| Non-Prism | ±(3mm+2×10-6×D) |
| Reflector | ±(3mm+2×10-6×D) |
| Single Prism | ±(2mm+2×10-6×D) |
| TIME | Fine ：0.7s Rapid：0.5s Tracking：0.3s |
| Minimum Display | Precision measurement and tracking: 0.1mm |
TILT COMPENSATOR
| Compensation method | Dual axis type |
| Compensation scope | ±4′ |
| Compensation resolution | 1″ |
Level Vial Sensitivity
| Tubular Level | 30″/2mm |
| Circular Level | 8’/2mm |
LASER Plummet
| Precision | 1.5mm@1.5m |
| Wavelength | 635nm |
| Security classification | Class2 |
| Output power | 0.7-1.0nw |
POWER SUPPLY
| Main unit power supply | |
| Battery | 2600mAh Li-ion battery |
| Low voltage buzzer | Shut down in 10 mins |
| Working hours | |
| Angle measurement | 25h |
| Measure distance + measure Angle | 20h |
PANEL
| Displa screen | 3.2-inch colour screen |
| Keyboard keys | 26 |
| keyboard backighting | Yes |
ENVIRONMENTAL INDICATORS
| Working temperature | -20°C~+50°C |
| Storage temperature | -30°C~+55°C |
| Waterproof and dustproof | IP54 |

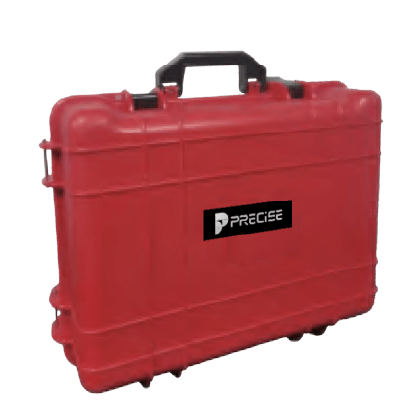

Professional Set
- Total station x1
- Battery x2
- Charger x1
- Tool bag x1
- Manual x1
- Warranty Card x1
- Certificate x1
- USB flash drive x1
- RP60 reflector x1
- RP30 reflector x1
- Objective cap x1
