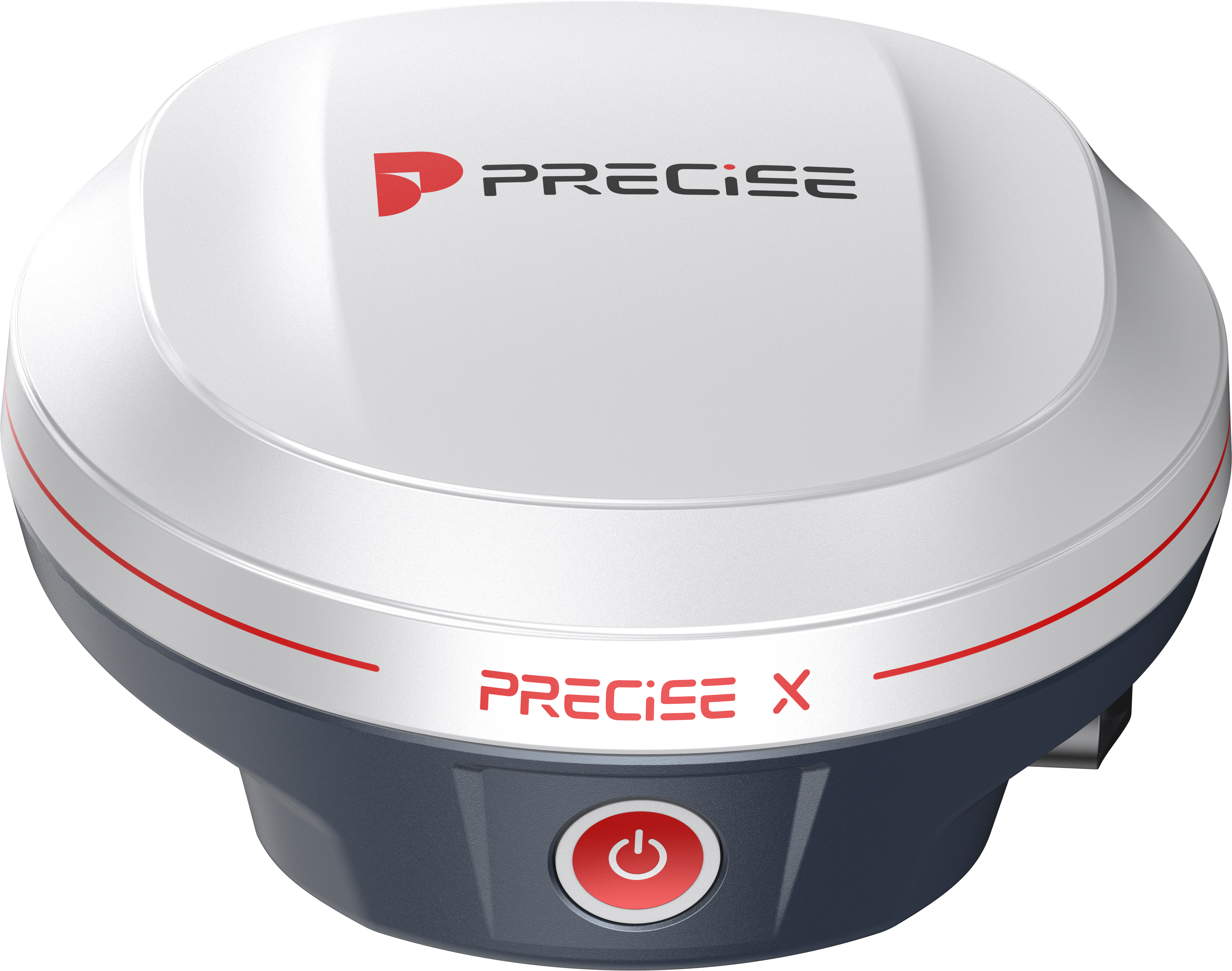

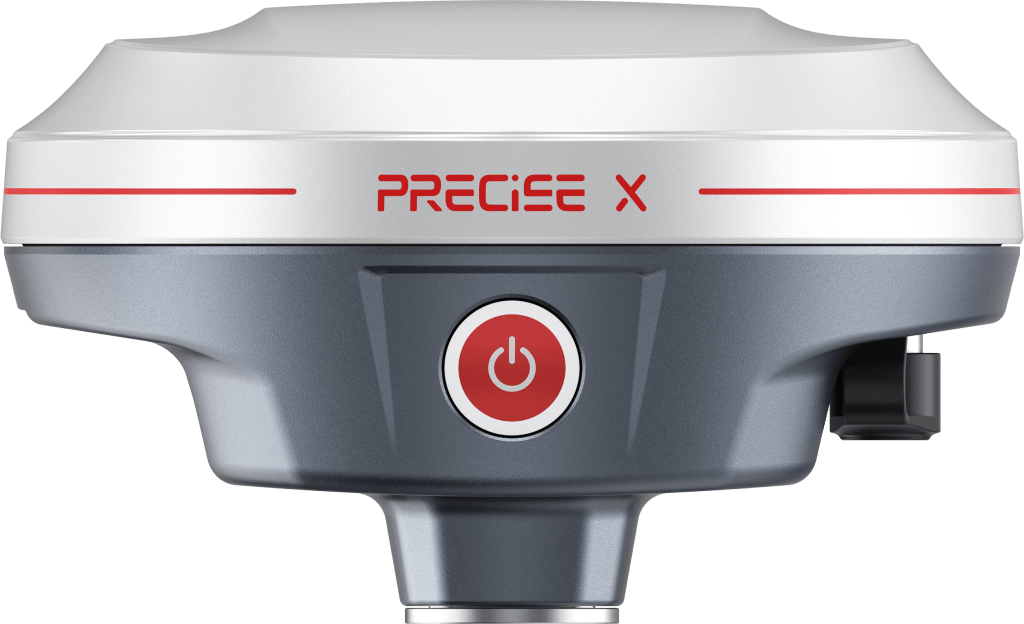

RTK RECEIVER
PRECISE X
Survey grade receiver with an Exceptional User Experience.
Algorithmic Magic to Enhance ‘Precision, Reliability, and Ease’, for an Exceptional User Experience.
Super-high Fix Rate
99.9%
Our product achieves exceptional positioning accuracy.
On average, only 1 out of every 1,000 positioning attempts,
This precision ensures unparalleled reliability for critical applications.
*Fix rate and accuracy can be affected by external conditions such as multipath, obstacles, satellite geometry, and atmospheric conditions.
EASY-Fix
High-spec hardware ensures hassle-free positioning and settlement.
30% faster speed and 20% higher rate to get fixed under the same canopy
- 1,808 channels
- 21 frequencies & full constellation
- 8+1 RTK accuracy
- 5 sec to converge to CM accuracy
EASY-Surveying
IMU overcoming conventional terrain constraints
while enhancing surveying flexibility and precision.
- Calibration-free
- Quick initialization
- Immune to magnetic disturbances
- 20mm accuracy at up to 60° angle
EASY-Stakeout
Real-time, precise AR visual
marking enhances accuracy and simplifies staking.
- 2mga CMOS sensor
- MM accuracy
- Visualized data display
EASY-Connecting
Versatile communication protocols enhance streamlined surveying and field operations.
- 4G internet modem
- 15km radio solution
- Worldwide PPP service
- Connect via IP, Bluetooth, Cable (Type-C)
EASY-Power
Extended Endurance for Uninterrupted Field Performance.
- 4.5 hours PD fast charging (Type-C)
- 28 hours working time with 6800mAh battery
- over 3,000 cycles of charging and discharging
Easy-Durability
Waterproof and Heat-Resistant Design for Extended Product Lifespan.
- 8-year designed lifespan
- Heat-Resistant aluminum housing
- IP68 waterproof & dustproof rating
Detail Specification
SATELLITE PERFORMANCE
| Channels | 1,808 |
| GPS | L1C/A, L2C, L2P(Y), L5 |
| GLONASS | L1, L2 |
| BEIDOU | B1i, B2i, B3i, B1C, B2a, B2b |
| GALILEO | E1, E5a, E5b, E6 |
| QZSS | L1, L2, L5, L6 |
| SBAS | L1, L5 |
| L-Band | B2b PPP |
| Positioning Rate | 1-20Hz |
ACCURACY
| Code Differential | H: 0.40m (RMS) V: 0.80m (RMS) |
| Static | H: 2.5mm±0.5ppm (RMS) V: 5mm±0.5ppm (RMS) |
| Real-time Kinematic | H: 8mm±1ppm (RMS) V: 15mm±1ppm (RMS) |
| Network PPK | H: 8mm±0.5ppm (RMS) V: 15mm±0.5ppm (RMS) |
IMU MEASUREMENT
| Tilt Accuracy (No tilt angle limit) | 20mm within 60° |
CAMERA
| Optical Format | 1/5” |
| Pixel Size | 1.75*1.75μm |
| Active Pixel Array | 1616*1232 |
| Sensor | 2 mega CMOS imaging sensors |
DATA STORAGE
| Type & Storage | SSD 8GB External USB Pen drive |
| Data Tranfer | Type-C USB Transfer Supports FTP/HTTP download |
| Differential Format | RTCM 2.1, RTCM 2.2, RTCM 3.0, RTCM 3.1, RTCM 3.2, NMEA 0183, CMR, CMR+ |
| Static Data Format | DAT, RINEX 2.x, RINEX 3.x, BINEX |
| GPS Output Format | VRS, FKP, MAC |
| Network Model | Ntrip fully supportable |
COMMUNICATION
| I/O | Type-C (OTG+Fast Charge+Ethernet) |
| Antenna Port | All-in-one port for radio/GPRS antenna |
| Network Modem | Nano-SIM card LTE FDD, LTE TDD, UMTS, GSM |
| UHF Radio | 2W Tx/Rx 410-470MHz |
| Protocol | LoraLink, TrimTalk, SOUTH, TrimMark III, Satel, PCC |
| WiFi | IEEE 802.11 a/b/g/n/ac Hotspot/Data Link |
| Bluetooth | Bluetooth 2.1 + EDR and 4.0 |
| NFC | Available |
INTERFACES
| Button | 1 |
| LED Indicator | Data Link, Satellite, Bluetooth, Power |
POWER SUPPLY
| Battery | Internal Li-on Battery 3.6V, 13,600mAh |
| Operating Time | Static mode 20h Rover mode 15h |
PHYSICAL
| Dimension | 74mm(H), 128mm (W) |
| Weight | 740g |
| Operating Temp. | -30°C to 65°C |
| Storage Temp. | -40°C to 80°C |
| Proof | IP68 water and dust proof 2m drop on hard surface 40G 10ms sawtooth wave |
